HHS高效鹽霧空氣過濾器主要用于在沿海地區及鹽霧較多區域，對進行海外工作設備的保護，也是一種保護電機或通風機等設備的過濾裝置，過濾器詳細規格技術參數見各過濾器產品說明。
常用規格 Common Specifications
|
型 號 |
外形尺寸 |
結 構 |
框 體 |
過濾面積 (m2) |
額定風量 (m3/h) |

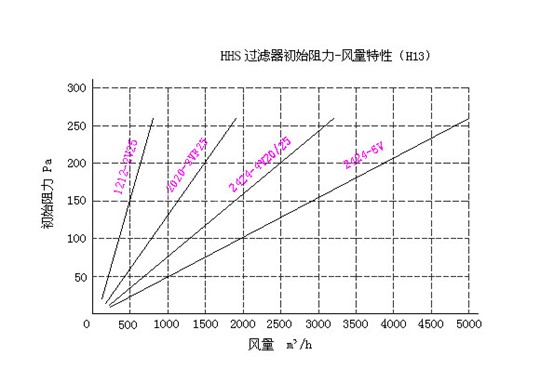

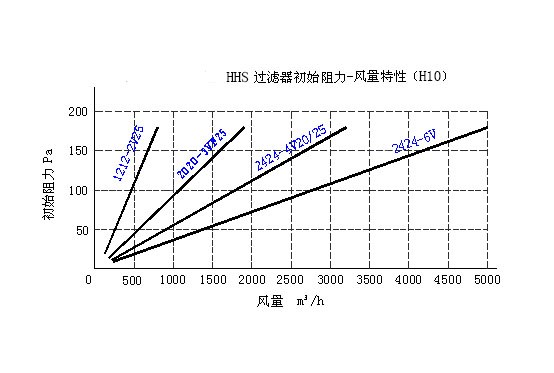

初始壓降 (Pa) |
|||
|

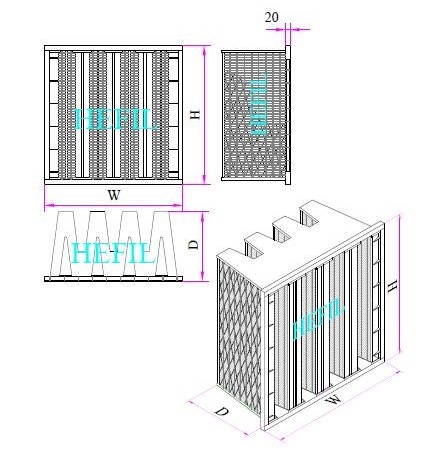

寬×高×厚(mm) |
F8 |
H10 |
H13 |
H14 |
|||||
|
HHS1212-2VF25 |
287×287×292 |
287 單凸 25mm |
2V 塑框/316L框 |
4.2 |
800 |
110 |
180 |
260 |
300 |
|
HHS1220-2VF25 |
287×490×292 |
7.7 |
1200 |
||||||
|
HHS1224-2VF25 |
287×592×292 |
9.4 |
1600 |
||||||
|
HHS2012-3VF25 |
490×287×292 |
490 單凸 25mm |
3V 塑框/316L框 |
6.4 |
1100 |
||||
|
HHS2020-3VF25 |
490×490×292 |
11.6 |
1900 |
||||||
|
HHS2024-3VF25 |
490×592×292 |
14.4 |
2400 |
||||||
|
HHS2412-3VF20/25 |
592×287×292 |
592 單凸 20/25mm |
3V 塑框/316L框 |
6.4 |
1100 |
||||
|
HHS2420-3VF20/25 |
592×490×292 |
11.6 |
1900 |
||||||
|
HHS2424-3VF20/25 |
592×592×292 |
14.4 |
2400 |
||||||
|
HHS2412-4VF20/25 |
592×287×292 |
4V 塑框/316L框 |
8.4 |
1600 |
|||||
|
HHS2420-4VF20/25 |
592×490×292 |
15.4 |
2500 |
||||||
|
HHS2424-4VF20/25 |
592×592×292 |
18.8 |
3200 |
||||||
|
HHS2412-5VF25 |
592×287×292 |
592 單凸 25mm |
5V 塑框/316L框 |
10.5 |
1800 |
||||
|
HHS2420-5VF25 |
592×490×292 |
19.0 |
3200 |
||||||
|
HHS2424-5VF25 |
592×592×292 |
23.5 |
3900 |
||||||
|
HHS1212-2V |
305×305×292 |
610 箱型 |
2V塑框/316L框 |
5.4 |
850 |
||||
|
HHS1224-2V |
305×610×292 |
10.8 |
1700 |
||||||
|
HHS2412-4V |
610×305×292 |
4V316L框 |
11 |
1700 |
|||||
|
HHS2424-4V |
610×610×292 |
22 |
3400 |
||||||
|
HHS2412-5V |
610×305×292 |
5V塑框/316L框 |
13.5 |
2100 |
|||||
|
HHS2424-5V |
610×610×292 |
27 |
4200 |
||||||
|
HHS2412-6V |
610×305×292 |
6V316L框 |
16 |
2500 |
|||||
|
HHS2424-6V |
610×610×292 |
32 |
5000 |
||||||
|
型 號 |
外形尺寸 |
過濾面積 (m2) |
額定風量 (m3/h) |

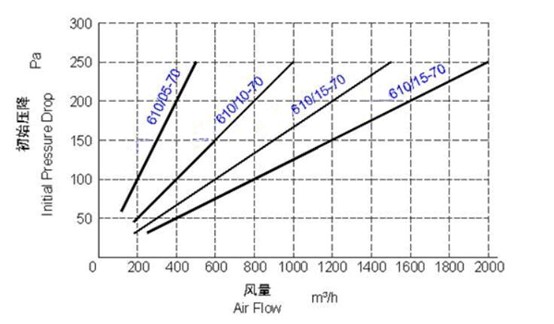

初始壓降 (Pa) |
|
W×H×D (mm) |
||||
|
HHS610/03-50 |
305×305×50 |
1.6 |
150 |
≤190 |
|
HHS610/05-50 |
305×610×50 |
3.3 |
300 |
|
|
HHS610/10-50 |
610×610×50 |
6.7 |
600 |
|
|
HHS570/20-50 |
1170×570×50 |
12 |
1300 |
|
|
HHS1170/10-50 |
1170×1170×50 |
24 |
2600 |
|
|
HHS610/05-70 |
305×610×70 |
5.5 |
500 |
≤220 |
|
HHS610/10-70 |
610×610×70 |
11.3 |
1000 |
|
|
HHS610/15-70 |
915×610×70 |
17.0 |
1500 |
|
|
HHS610/20-70 |
1220×610×70 |
22.7 |
2000 |
|
|
HHS570/10-70 |
570×570×70 |
9.7 |
900 |
|
|
HHS570/20-70 |
1170×570×70 |
20.4 |
1800 |
|
|
HHS1170/10-70 |
1170×1170×70 |
40.8 |
3600 |
|
|
HHS610/10-90 |
610×610×90 |
15.4 |
1300 |
|
|
HHS610/20-90 |
1220×610×90 |
31.1 |
2600 |
注：1、若遇規格、結構變更，以本公司提供的最新數據為準；有關更新內容請關注本公司網站：www.ljblfq.com.
2、本公司接受非表上規格自凈器產品的訂貨。
Note: 1. In case of specifications or structures changes, HEFIL will provide up-to-date data on website: www.hefilter.com.
Note: 2. HEFIL makes various of other models’ BAFH filter not listed in above table. Please consult with us if you need.
◆過濾效率等級F8~H13可供選擇
H13過濾效率：對≥0.3μm顆粒的過濾效率在99.99%以上
E10過濾效率：對≥0.5μm顆粒的過濾效率在95%以上
F8過濾效率：對≥1.0μm顆粒的過濾效率在80%以上
◆專用折疊設備進行折疊
◆特制耐腐蝕濾紙作為濾材，帶來穩定的過濾效率
◆特種鋁箔或PVC間隔片，不銹鋼316L外框或塑料外框
◆可帶雙面護網，保護濾料，強度好
◆每臺過濾器均經過測試，符合GB/T13554與EN1822標準
◆Filtration efficiency grade F8~H13 is available
H13 filtration efficiency: the filtration efficiency of ≥0.3μm particles is above 99.99%
E10 filtration efficiency: the filtration efficiency of ≥0.5μm particles is more than 95%
F8 filtration efficiency: the filtration efficiency of ≥1.0μm particles is more than 80%
◆Specialized folding equipment for folding
◆Special corrosion-resistant filter paper as filter material, bringing stable filtration efficiency
◆Special aluminum foil or PVC spacer, stainless steel 316L outer frame or plastic outer frame
◆Can be with double-sided guard mesh to protect the filter media with good strength
Each filter is tested to meet GB/T13554 and EN1822 standards
應用 Application
◆適用于在沿海地區或者鹽霧較多地區進行野外作業的電機，高效鹽霧空氣過濾器是一種保護油田電機和通風機的高效過濾裝置。
