- BAFH鹽霧空氣過濾箱
- 提交訂單
BAFH-鹽霧過濾器主要用于在沿海地區及鹽霧較多區域，對進行海外工作設備的保護，也是一種保護電機或通風機等設備的過濾裝置，過濾器詳細規格技術參數見各過濾器產品說明。
常用規格 Common Specifications
|
型號 Model |
處理風量 Air Flow (m3/h) |
設計風速 Air Velocity (m/s) |
過濾段數 Filter Stages |
箱體尺寸 Overall Dimension L×W×H (mm) |
風管尺寸 Tuyere Size (mm) |
|
|
矩形 Square |
圓形 Round |
|||||
|
BAFH-1500 |
1500 |
0.85 |
3 |
1350×700×700 |
320×320 |
Φ400 |
|
BAFH-3000 |
3000 |
7 |
2 |
910×670×710 |
400×320 |
Φ400 |
|
BAFH-3000F |
1500×670×710 |
|||||
|
BAFH-6000 |
6000 |
7 |
2 |
1830×770×1430 |
500×500 |
Φ560 |
|
BAFH-6000F |
2490×770×1430 |
|||||
|
BBAFH-12000 |
12000 |
7 |
2 |
1830×1395×1430 |
800×630 |
Φ800 |
注：1、若遇規格、結構變更，以本公司提供的最新數據為準；有關更新內容請關注本公司網站：www.ljblfq.com.
2、本公司接受非表上規格自?xún)羝鳟a(chǎn)品的訂貨。
Note: 1. In case of specifications or structures changes, HEFIL will provide up-to-date data on website: www.hefilter.com.
Note: 2. HEFIL makes various of other models’ BAFH filter not listed in above table. Please consult with us if you need.優勢 Advantages
◆鹽霧過濾箱主要由防雨器、過濾器、箱體三部分組成，防雨器和箱體一般采用優質不銹鋼304/316L材料

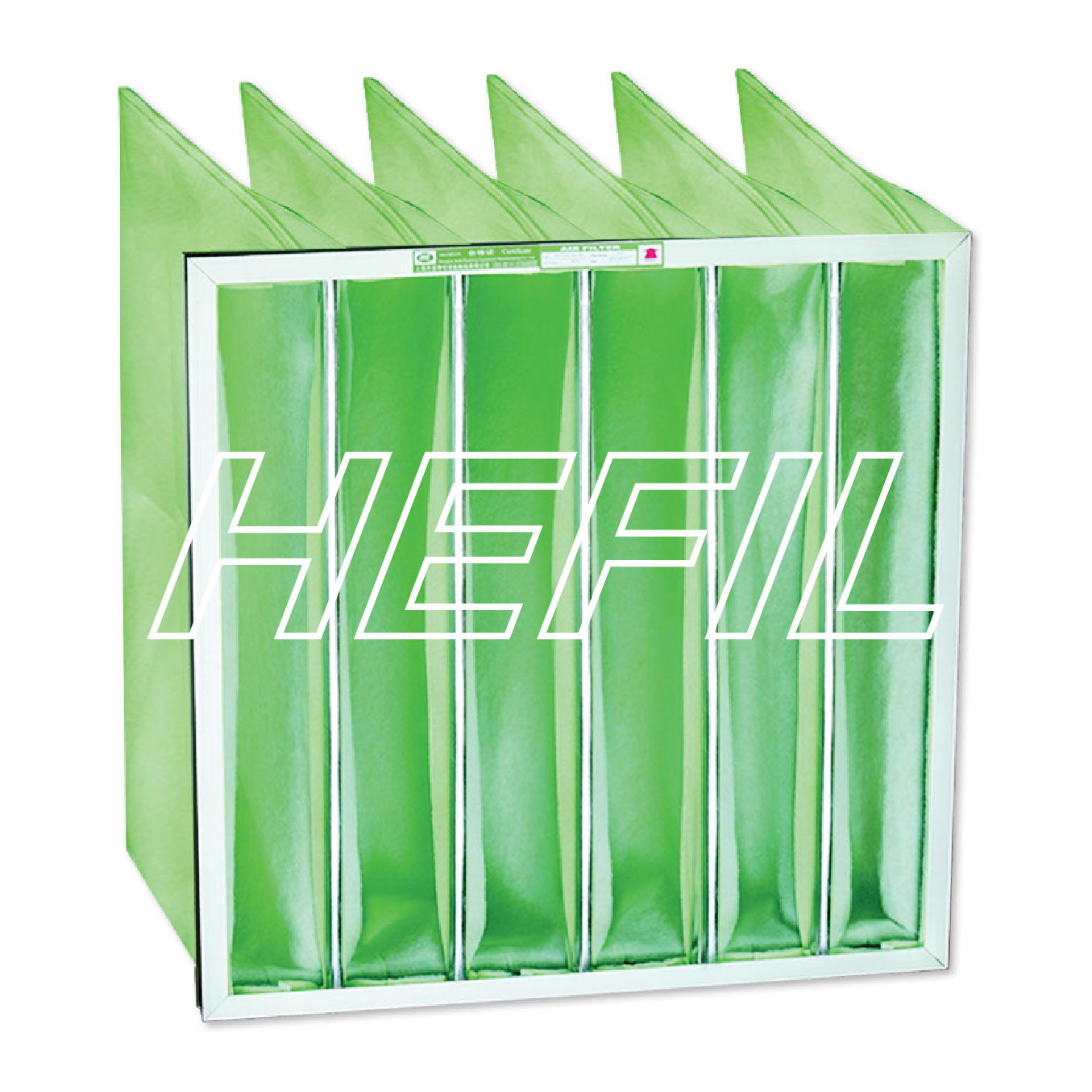

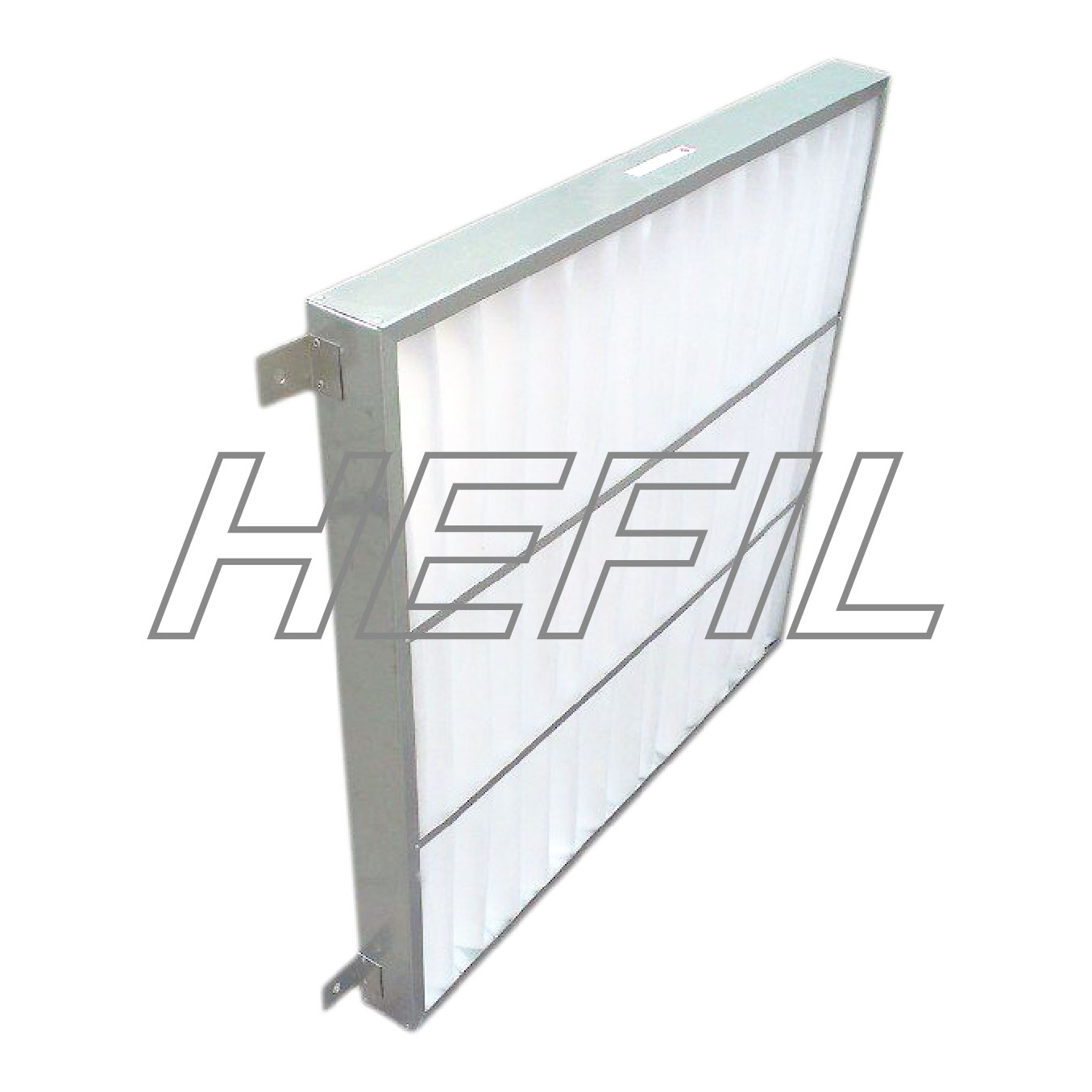

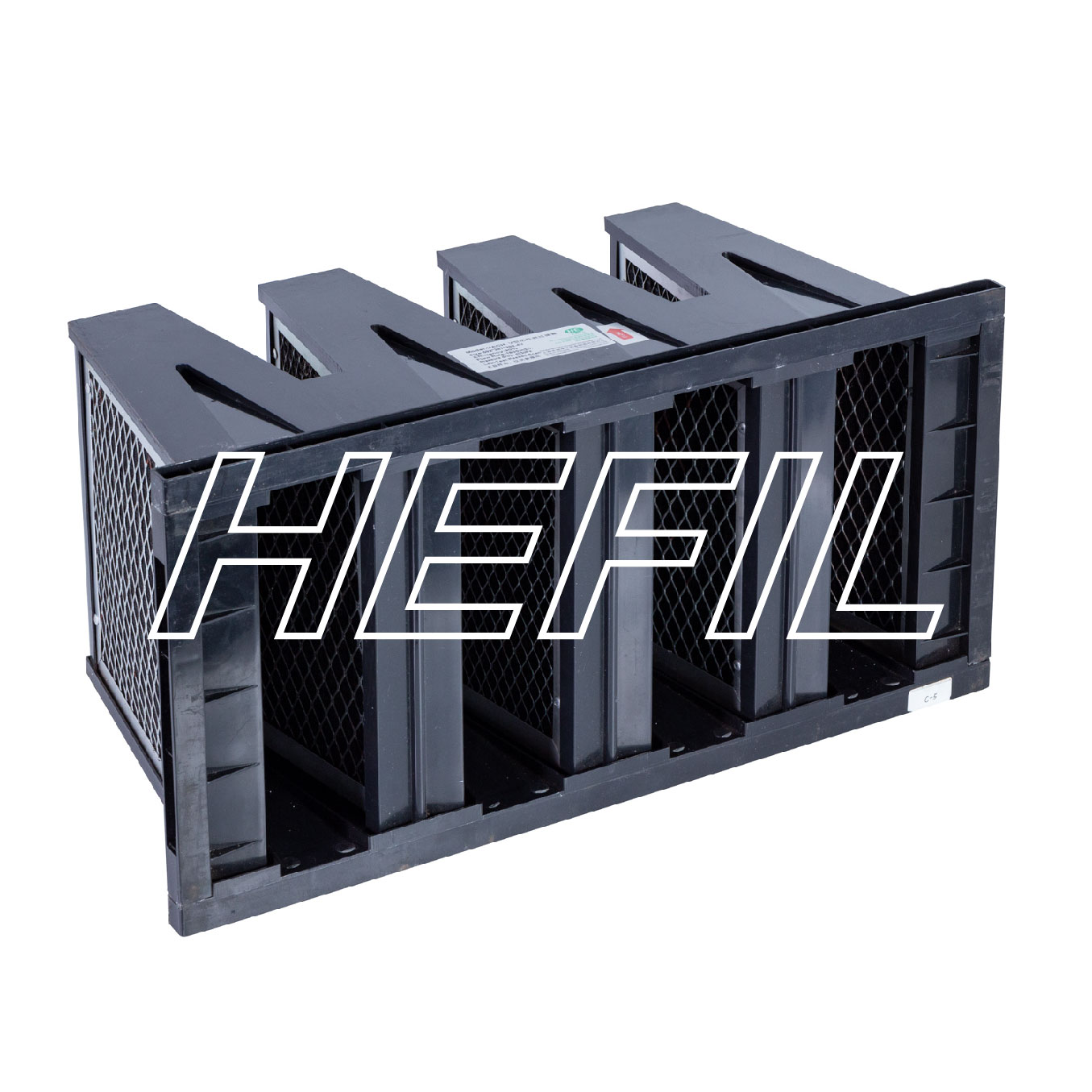

◆箱體一般含有初、中二級過濾
◆箱體內過濾器的尺寸，主要以國際通行尺寸24”×24”即610×610為準
◆過濾器按1×2，2×2，2×3，3×2等矩陣排列
◆內置快速裝卸型模塊式安裝框或滑槽式安裝槽，適合不同場合的需求
◆快開式高密封度檢修門
◆良好的防銹性能，使用周期長
◆可以根據客戶的要求非標定制生產
◆Salt spray filter is mainly composed of rain-proofing device, filter and filter housing. Rain-proofing device and housing generally adopt high quality stainless steel 304/316 l material.
◆Housing general including filters of two stages: pre-filter and medium efficiency filter.
◆Size of the filters inside are the international common dimension 24 "× 24" , equals to 610 × 610mm.
◆Filters are arranged according to a matrix form in the order of 1 × 2, 2 × 2, 2 × 3, 3 × 2.
◆Inside of the box, there are rapid loading and unloading installed module type box or chute-type installing groove to fit the requirement of different situations.
◆Quick opening and high tightness access door.
◆Good performance of anti-rust, long service lifetime.
◆It can be customized as per customer's request.
技術參數 Technical Parameter
◆組合式鹽霧過濾箱中一般含有初、中二級過濾，根據用戶不同的使用要求選擇相應的鹽霧過濾器。鹽霧過濾箱體的材質主要由不銹鋼板制成。組合式鹽霧過濾箱一般由以下部件組成：
◆箱體、檢修門、壓差表、風機、進（出）風口、過濾器、安裝框、變頻器等
◆其中風機為可選件，可以根據客戶的要求取或舍
◆進（出）風口尺寸：標配為方形風口（尺寸不限定），特殊情況可按客戶要求定做
◆為了結構緊湊，可設計成一個門。初中高效多級過濾采取側裝抽拉式，風機裝在箱體出風口，箱體兩端進出風口徑與現場管道匹配
◆電機功率：1000W
◆Composite salt spray filter box generally contains primary and secondary filter. Users can select the appropriate salt spray filter in accordance with different requirements. Salt spray filter box is mainly made of stainless steel plate. Composite salt spray filter box generally consists of the following components:
◆Cabinet, access door, pressure difference switch, fans, air inlet (outlet), air filters, filter installing frame, frequency inverter etc.
◆Fan is optional, users decide whether it is needed according to actual requirements.
◆ Air inlet (outlet) size: standard for square outlet (size is not qualified) or can be customized according to customers’ requirements.
◆For compact structure, it can be designed as a door. The primary, middle and high efficiency multi-stage filtration takes the side mounted pull-out type, the fan is installed in the box air outlet side , and the inlet and outlet air caliber atboth ends of the box matches with the site pipeline
◆Motor power: 1000W
圖例：BAFH-15000-3型高效過濾箱（初、中、高效三級過濾）。不銹鋼箱體材質。
應用 Application
◆廣泛適用于在沿海地區或者鹽霧較多地區進行野外作業的電機，鹽霧過濾器是一種保護油田電機和通風機的高效過濾裝置。
◆It is widely applicable to the motors work in more salty and foggy area or in the coastal region, salt spay filter is a kind of high efficiency filter unit that protects of oil-filed motor and fan.
